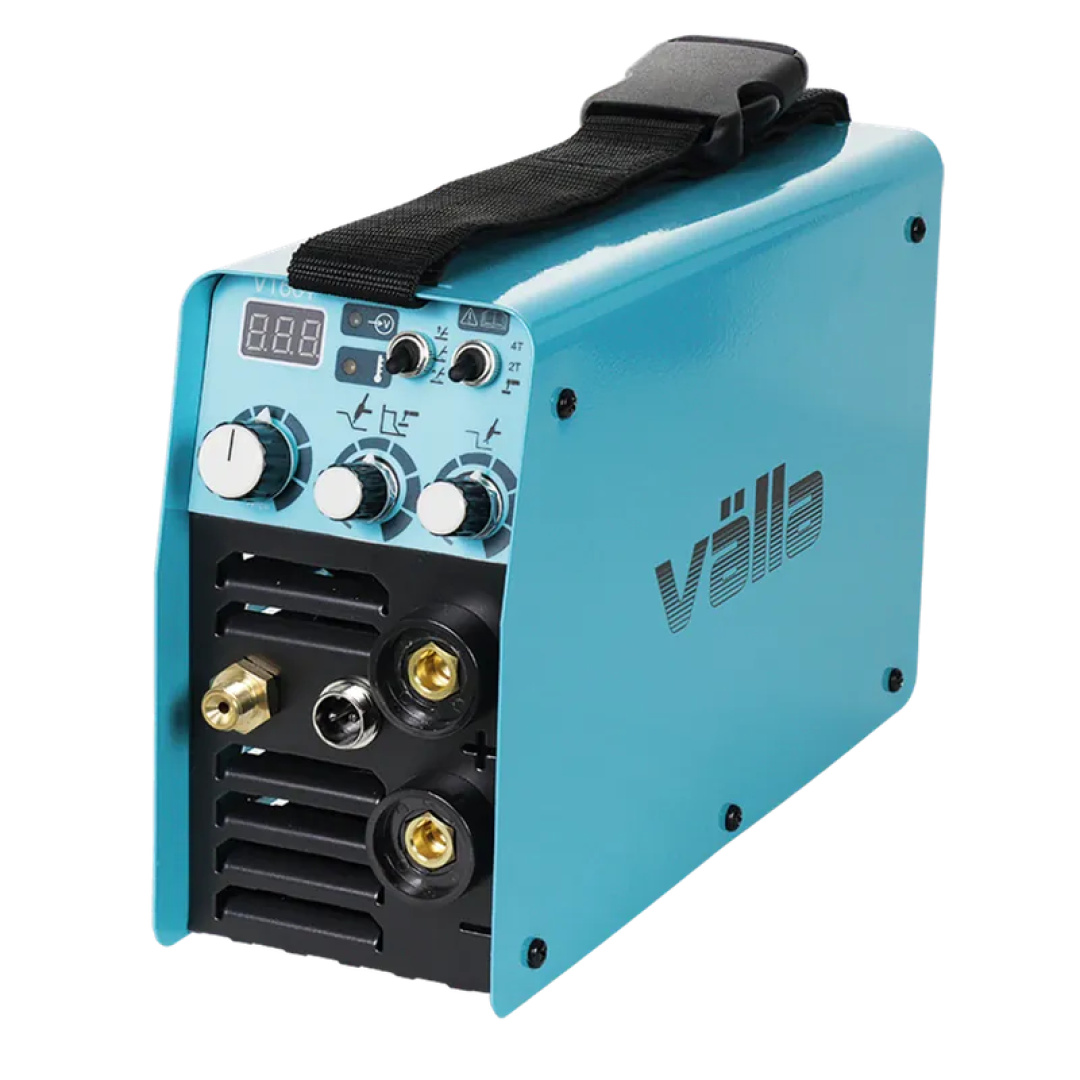

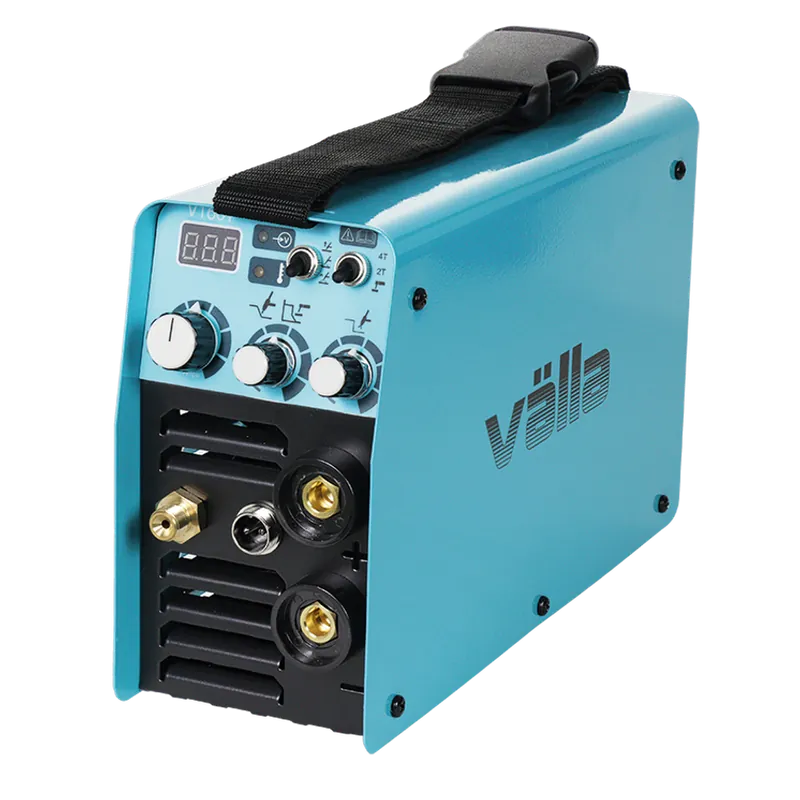

Välla V160T Inverter DC TIG & MMA Welder

Välla V160T Inverter DC TIG & MMA Welder is a versatile and robust DC TIG welder designed for operators who require precision and portability. Utilizing the latest IGBT inverter technology, it delivers a stable, high-quality arc that is easy to strike and control. Includes WP17 Torch & Starter Kit – 12-Month RTB Warranty

Whether you are performing intricate TIG work or heavy-duty MMA welding, this machine provides the flexibility needed for professional results. The integrated Pulse function is a standout for this class, allowing for faster travel speeds and better heat management on delicate materials.

Note: This machine is a DC-only power source, making it ideal for steels and copper alloys. (Not suitable for welding Aluminium).

Key Product Features

• DUAL WELDING MODES: Professional-grade inverter power source supporting both DC TIG and MMA (Stick) welding. Perfect for precision work on stainless steel, mild steel, and copper.

• ADVANCED ARC CONTROL: Features High-Frequency (HF) Start for non-contact arc striking, alongside Pulse technology (2.5 pulses per second) to reduce heat input and prevent warping on thin sheet metal.

• FULL TIG TORCH KIT INCLUDED: Comes ready to set up with an industry-standard WP17 TIG Torch and a comprehensive starter kit (collets, ceramics, and back caps).

• USER-FRIENDLY INTERFACE: Precision control via a digital display with adjustable Down-slope (0-10s) and Post-gas (0-10s) timing to ensure crater-free finishes and protected welds.

• COMPACT & PORTABLE: Engineered for mobility, weighing only 4.5kg. Designed with a small footprint (300x100x180mm) and a built-in carry strap for site or workshop use.

• SAFETY & RELIABILITY: Built-in protection against overheating and voltage fluctuations. Fully certified with UKCA/CE marks and backed by a 12-Month Return-to-Base (RTB) Warranty.

Technical Specifications

Specification	Details
Model	Välla V160T
Input Voltage	Single Phase 230V ±10%
Current Range	10A – 160A
Duty Cycle	20% @ 160A / 60% @ 90A
Arc Start	High-Frequency (HF) or Lift TIG
Pulse Frequency	2.5 Hz
Protection Class	IP21S / Class F
Weight	4.5 kg
Dimensions	300 x 100 x 180 mm

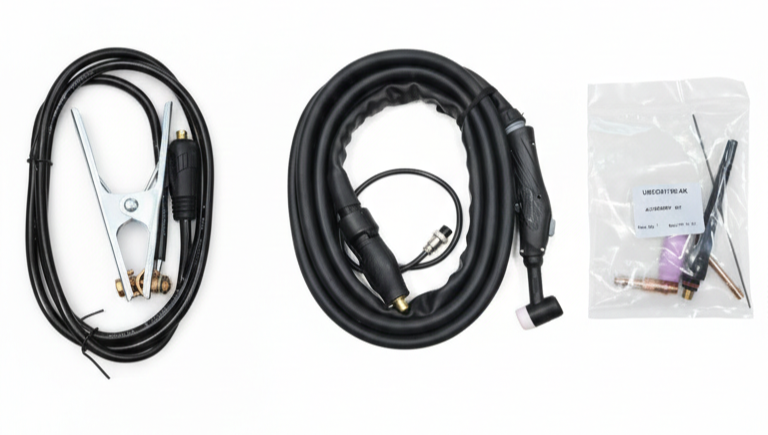

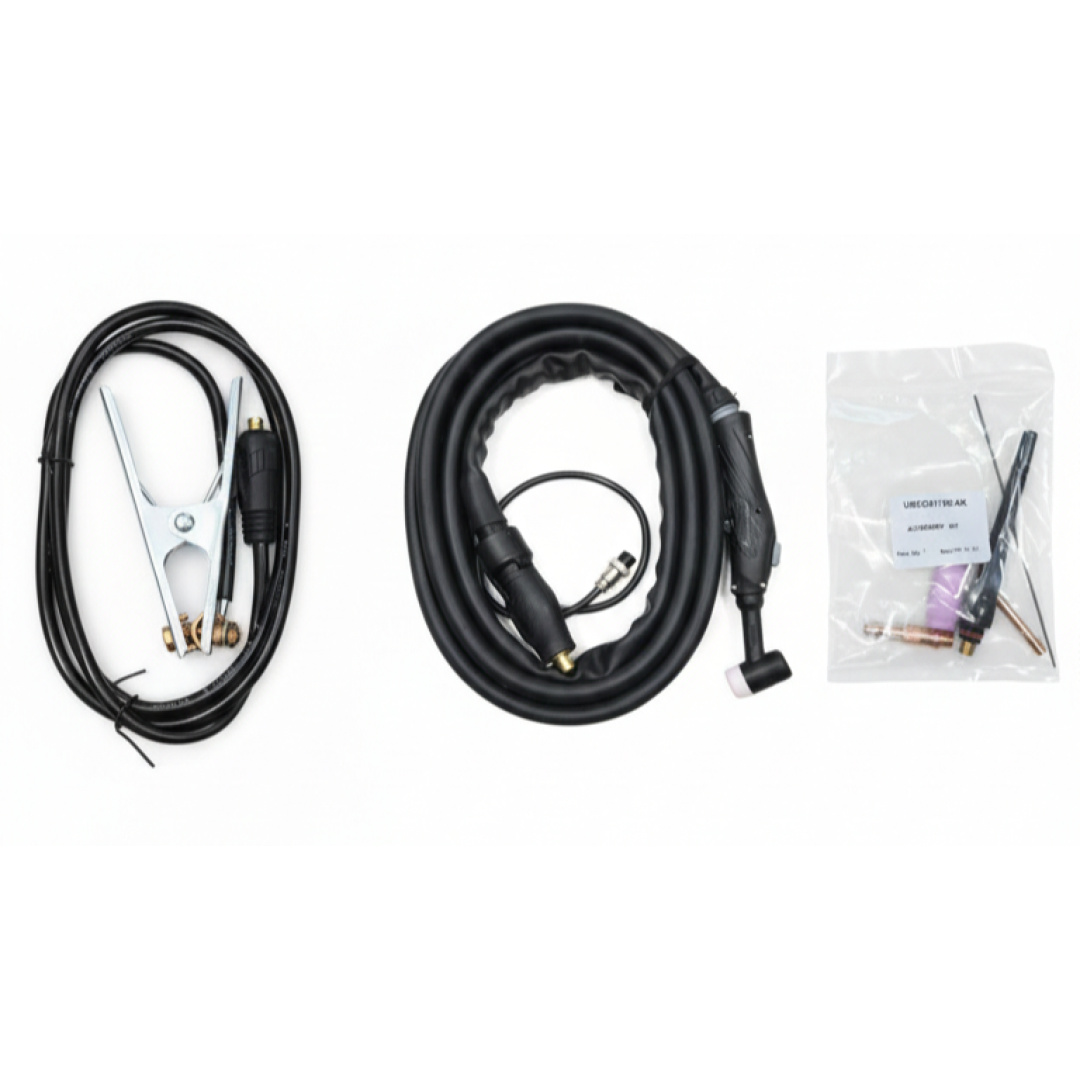

What’s in the Box?

• 1 x Välla V160T Inverter Power Source

• 1 x WP17 TIG Torch (Industry Standard)

• 1 x Full TIG Starter Kit (Including Collets, Collet Bodies, Ceramic Nozzles, and Back Caps)

• 1 x Heavy-Duty Earth Clamp & Cable

• 1 x Operator Manual

⚠️️ Important Buyer Notes:

1. Mains Connection: This machine is supplied with a bare power cable and requires a suitable mains plug (13A or 16A) to be fitted by the user before use.

2. Gas Requirements: To use the TIG function, you will require a Gas Regulator and a supply of Argon shielding gas (sold separately).
