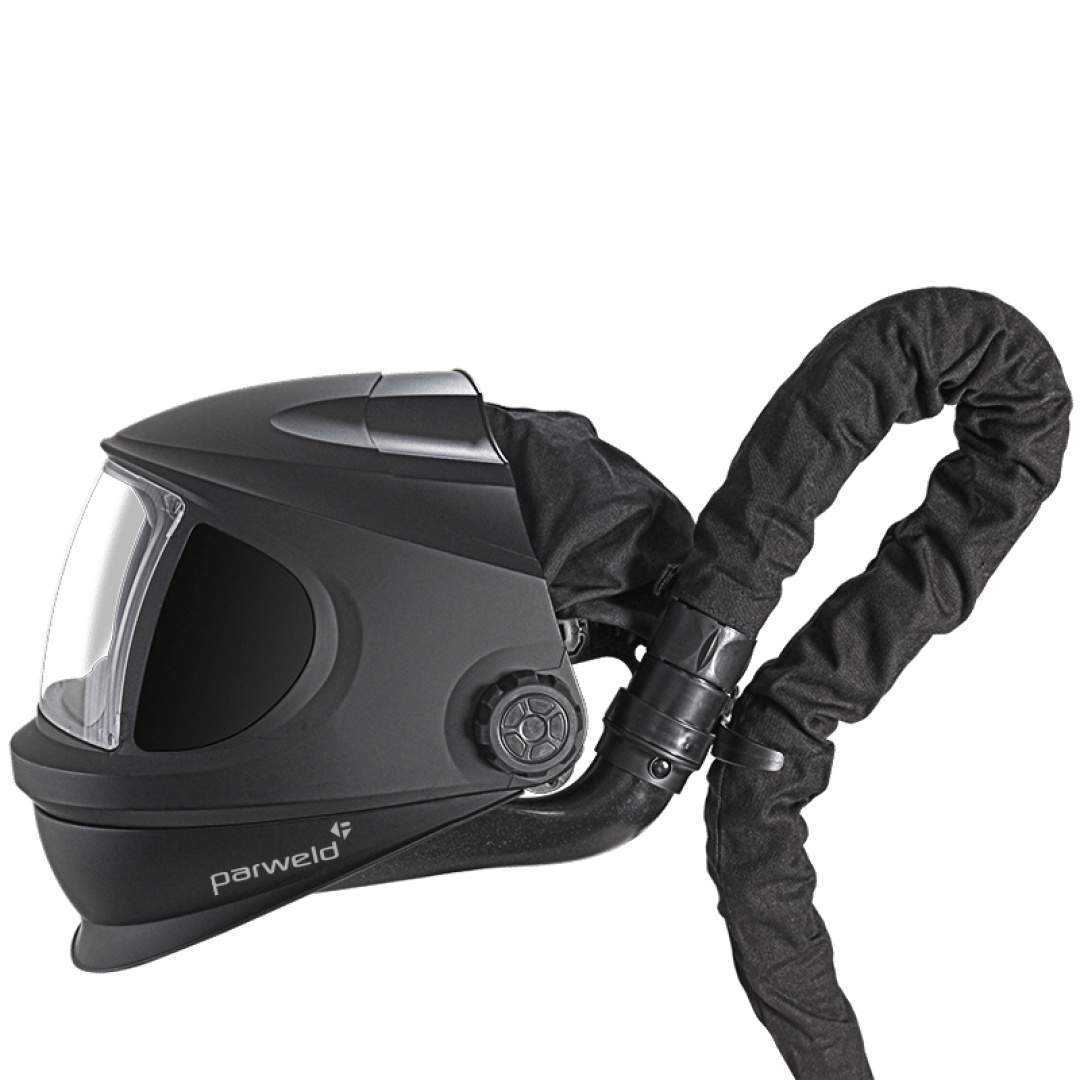

Parweld XR943A Air-Purifying Respirator

The Parweld XR943A PAPR (Powered Air Purifying Respirator) is designed for particulate environments, offering a flip-up welding and grinding helmet, a simple status display, and a smooth, ultra-quiet brushless motor with two-speed airflow control. It features audible and vibration warnings, a comfort belt with detachable shoulder straps, and a removable lithium-ion battery with a 10-hour runtime. The unit is lightweight at less than 1.1 kg and includes easy-to-operate controls. It comes supplied with an A1 P3 main filter, an activated carbon pre-filter, and a metal spark arrester for comprehensive filtration. This system is TH3P certified in accordance with European standard EN12941: 1998/A 1:2004/A2:2008 TH3P.

Th3P Filter Applications:
• Metal Grinding and Cutting Applications
• Welding of Aluminium by MIG or TIG Processes
• Welding of Stainless Steel by MIG & TIG Processes
• Welding of Steel by MMA, MIG or TIG
• Welding of Zinc Coated Steel by MIG or TIG

Kit Includes:

PAPR Respiratory Filter System

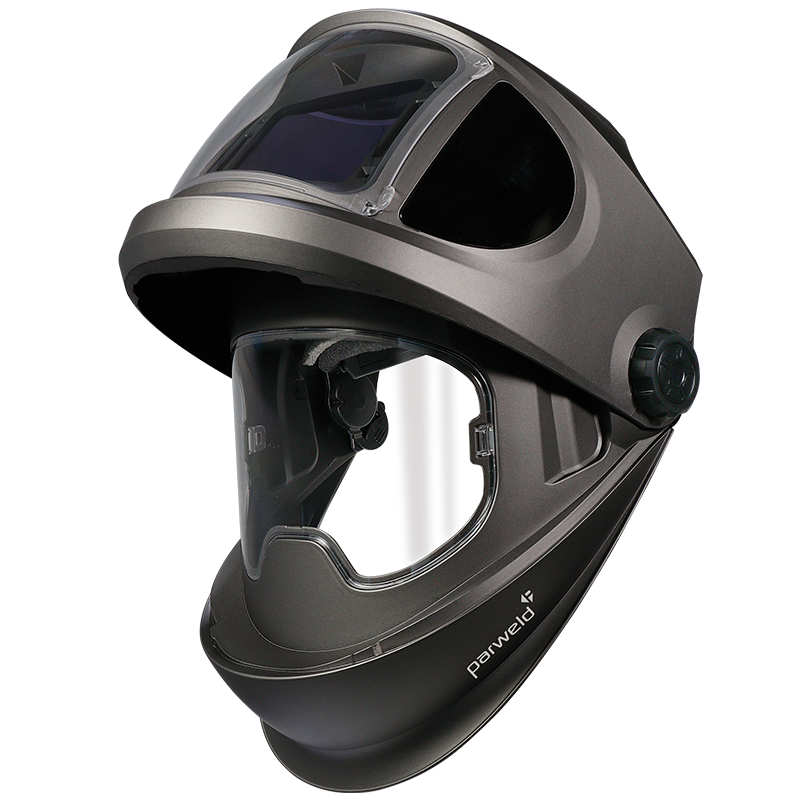

XR1020 – Flip-Up Front Welding & Grinding Helmet (includes Face Seal and Air Duct)

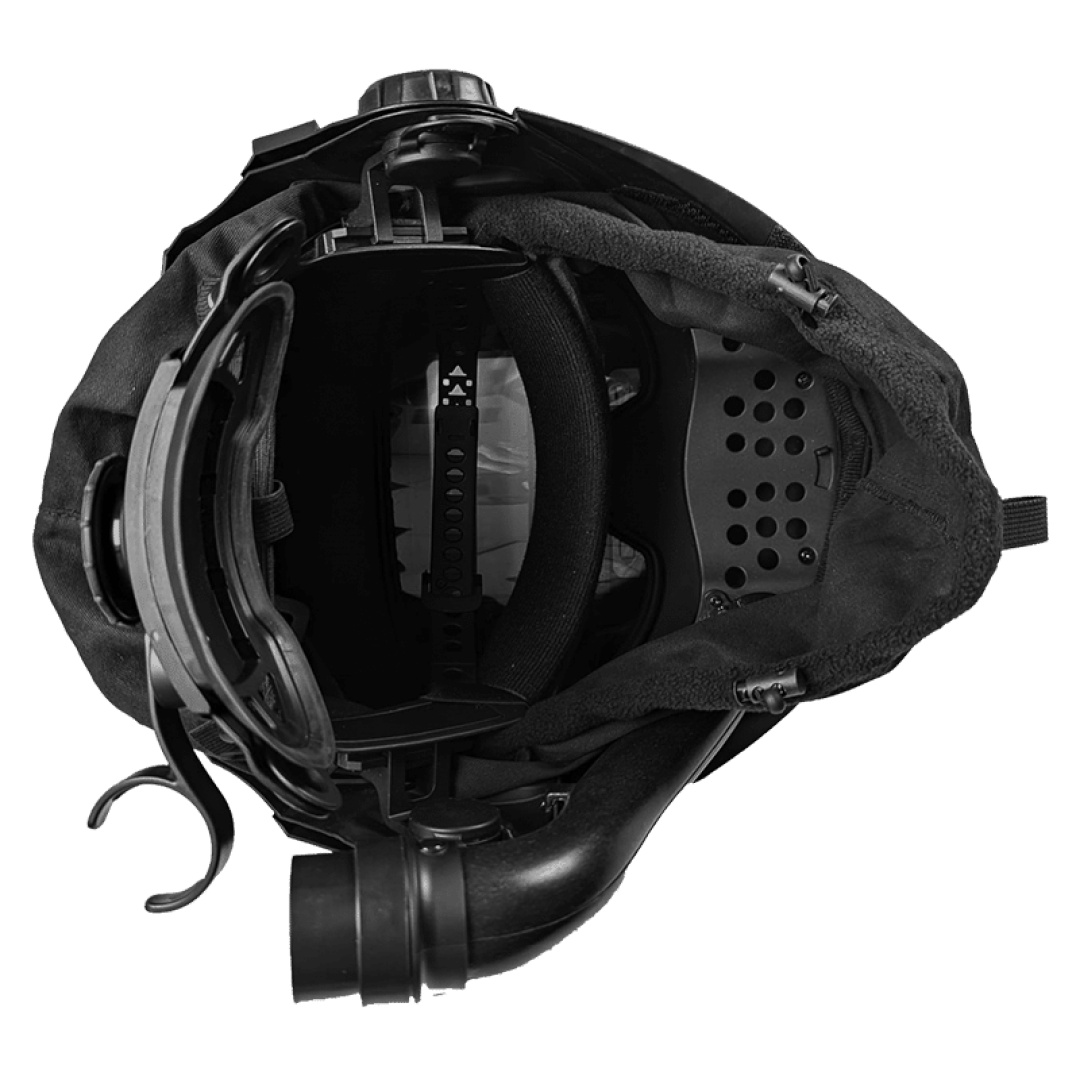

XR1021 – Air Duct and Internal Diffuser Assembly
XR1022 – Face Seal and Fixing Kit
XR423 – Front Cover Lens
XR353 – Auto-Darkening Filter (ADF)
XR435 – Side Window Replacement Kit (includes Obscure Cover)
XR433 – Grinding Protective Lens (Curved)
XR434 – Inside Cover Lens (ADF)
XR342 – Adjustable Headband
XR372 – Sweatband
XR373 – Headband Fixing Hand Nuts (2 Piece Set – Pair)
XR436 – Diopter Holder Bracket (2 Piece Set – Pair)
XR344 – Hose Clip For Headband
CR2450 – Battery (Single)
Weight 0.288 kg
Viewing Size
108mm x 74mm (4.56″ x 3.20″)

Style & Design Graphite

Air Flow Rate 170 or 220nl/min

Helmet Material High Impact Polyamide Nylon

Motor Brushless

Fuse Electronic

Battery Li-ion 14.8V Rechargeable

Charging Time Approx 2.5 Hours

Charging Cycles >350

Run Time 11 Hours at 170nl/min, 9 Hours at 220nl/min, Based on Min Fully Charged new battery and filter room temperature

Noise Maximum 60dB(A)

Voltage/Capacity 14.8V/2.2Ah

Pre-Filter Carbon (Odour)

Air Hose Length 850mm

Master Filter Type P3 TH3P R SL for TH3P System (Europe)

Helmet Light State DIN Shade 3

Helmet Dark State DIN Shade 4-8/9-13 (Variable)

External Shade Control Yes

Helmet Light to Dark 0.04ms

Helmet Dark to Light 0.3-0.9 Seconds (External Variable)

Helmet Sensitivity External Variable

Helmet UV/IR Protection Permanent Shade DIN16

Minimum Amp Requirement 5A

Helmet Storage Temperature -20ºC to +70ºC (-4ºF to -158ºF)

Helmet Operating Temperature -5°C to +55°C (23°F to 131°F)

Grind Mode Yes

Helmet Filter CE Optical Class 1/1/1/1 EN 16321

Conforms To A2:2008, BS EN 175, EN12941:1998, TH3 P R SL, A1:2004, BS EN 150 16321-1, Impact Rating E (120 m/s)
