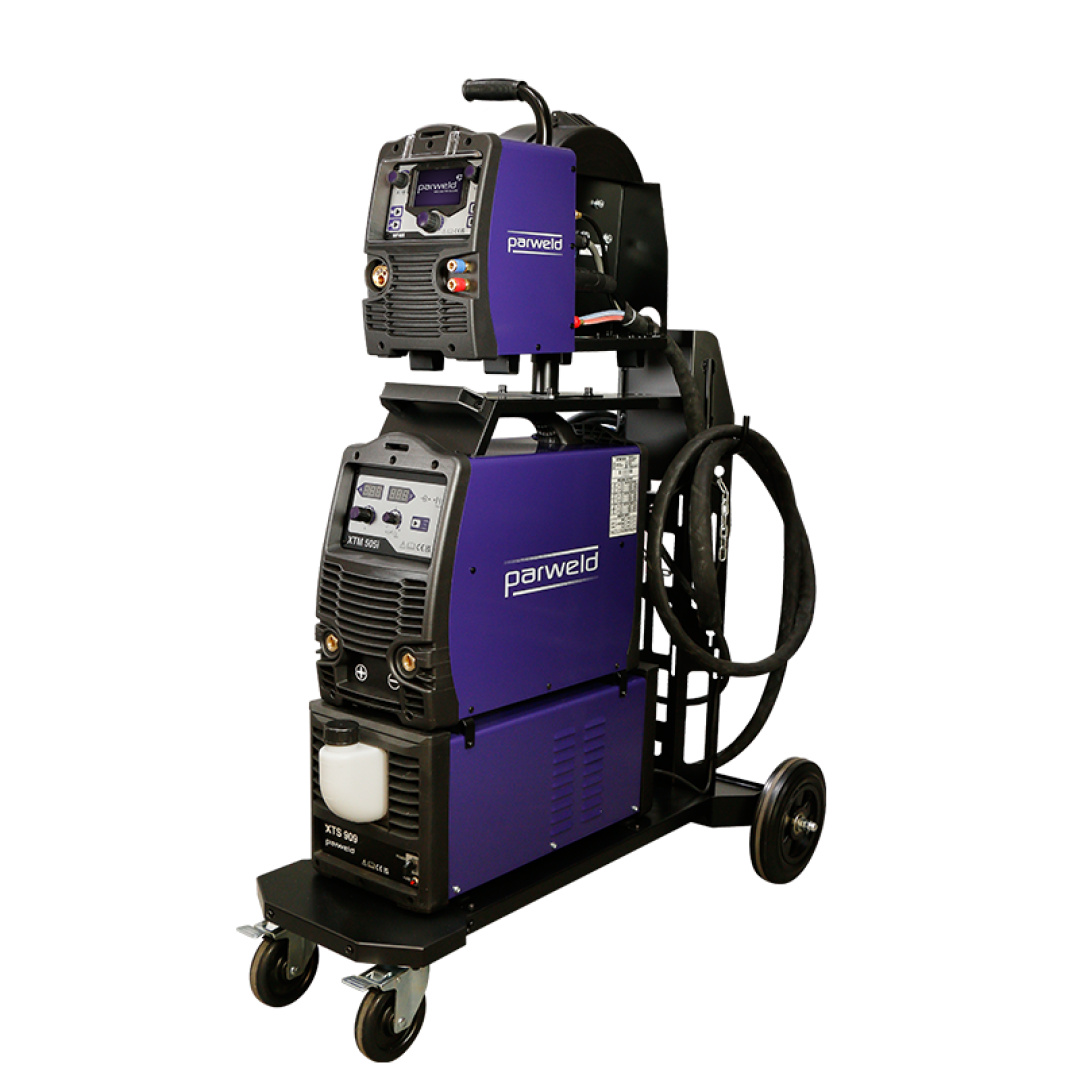

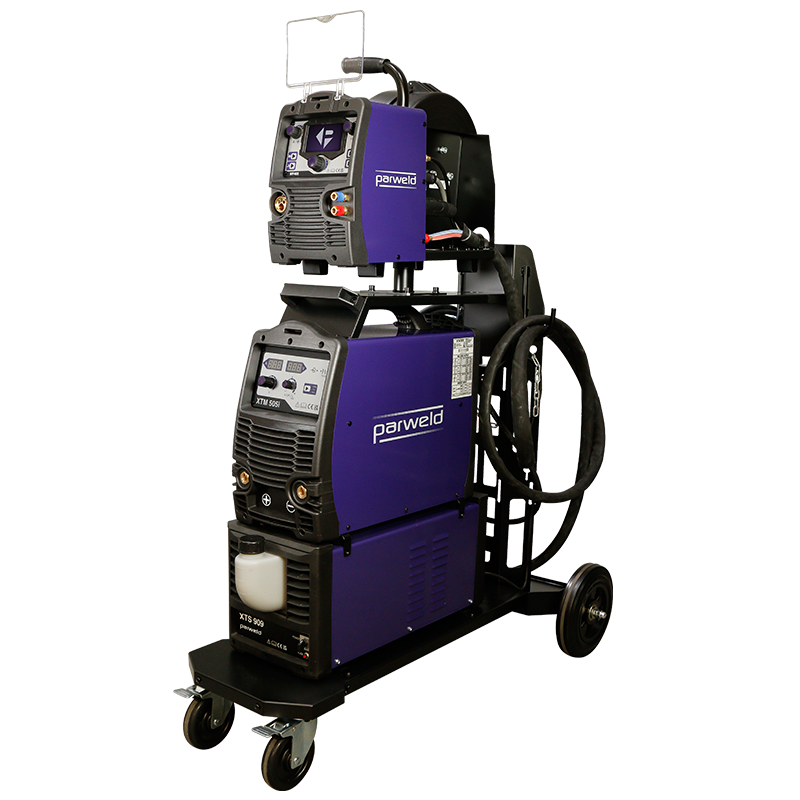

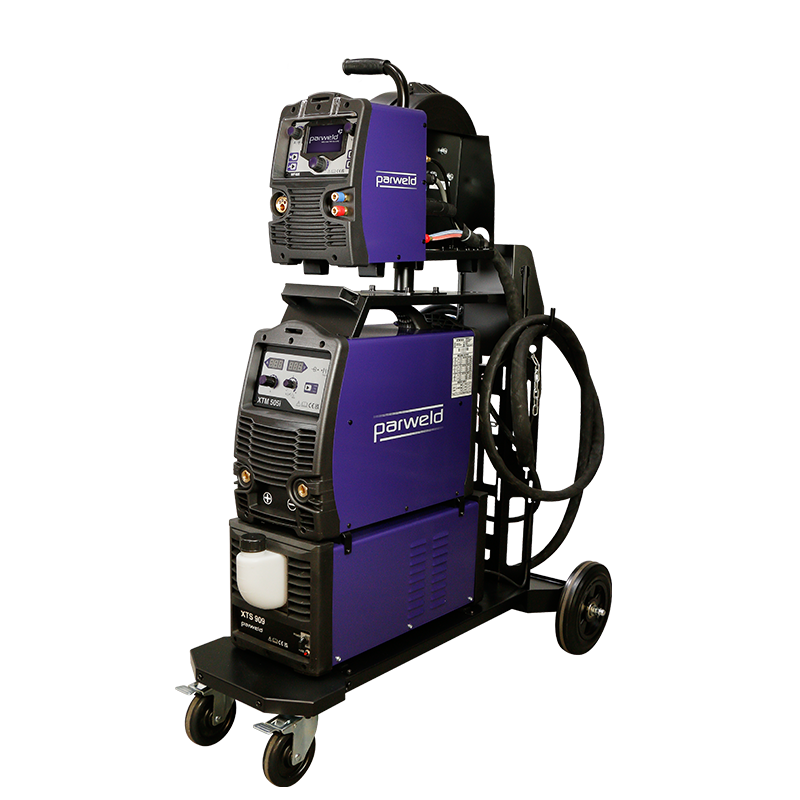

Parweld XTM 505i 500A MIG Inverter Machine
£2,300.46 Excl. VAT
Product Specifications
Parweld XTM 505i 500A MIG Inverter Machine
The XTM 505i three-phase MIG Inverter is a high-performance multi-process power source capable of MIG, Lift TIG, and MMA welding. Trolley mounted with a storage drawer and separate wire feeder with a large interactive colour screen. The machine has synergic control in MIG mode, so welding parameters will adjust automatically when the material thickness is changed, making it easy to operate. Inverter technology delivers significant power savings over conventional step MIG machines. The XTM 505i can be upgraded to a water cooled set by swapping the drawer for a water cooler.
Key Features Include:
- Multi-process MIG/LIFT TIG/MMA
- 400V Three Phase Machine

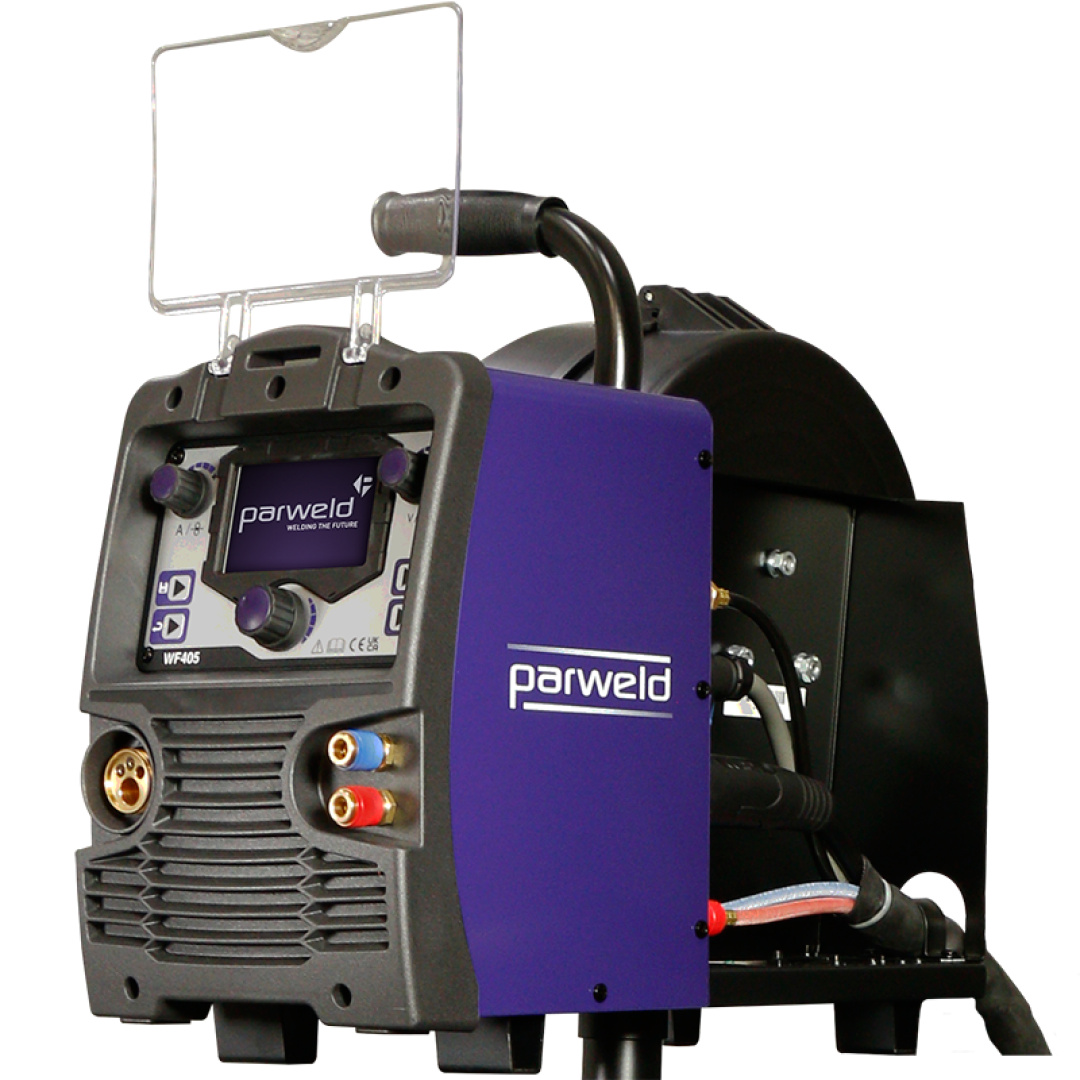

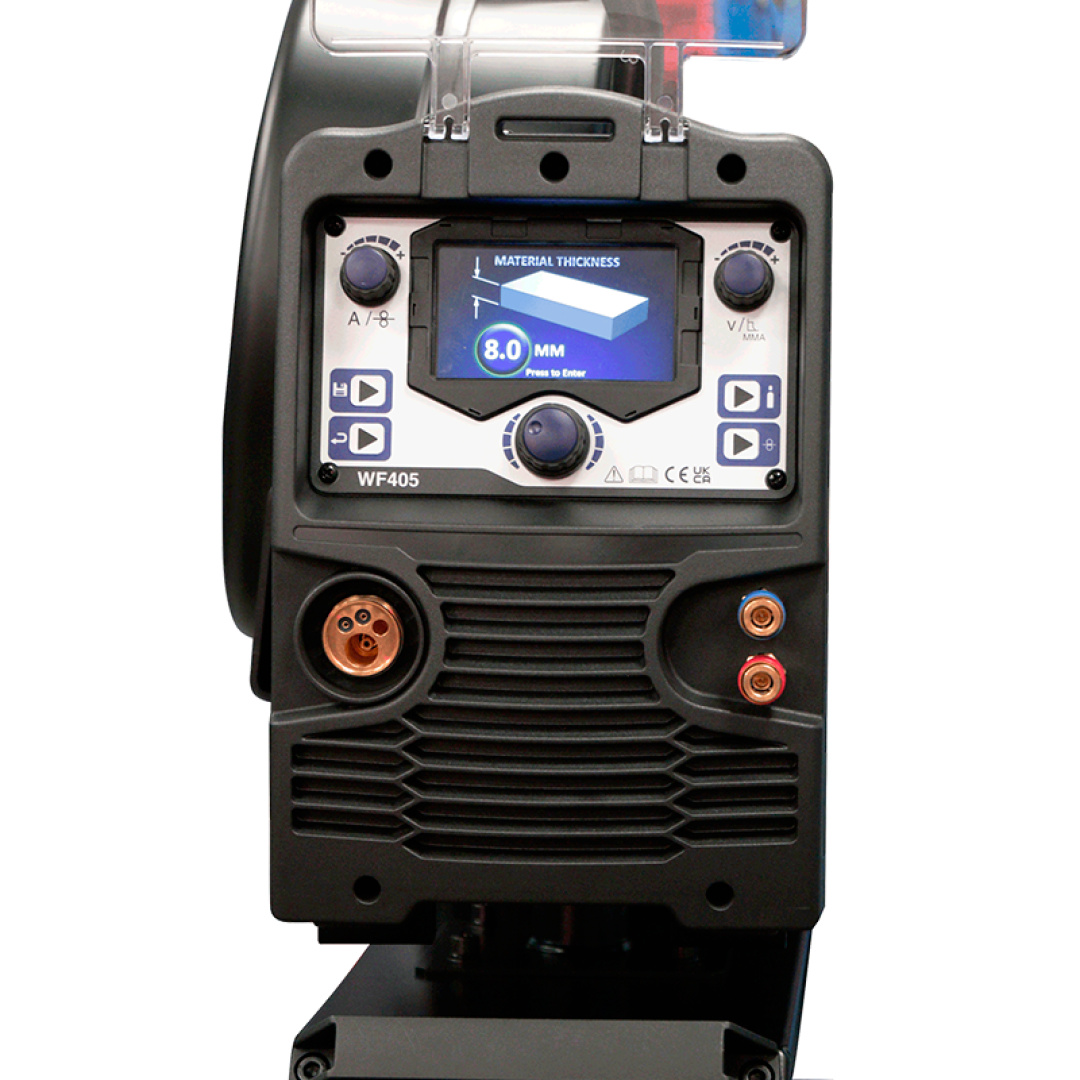

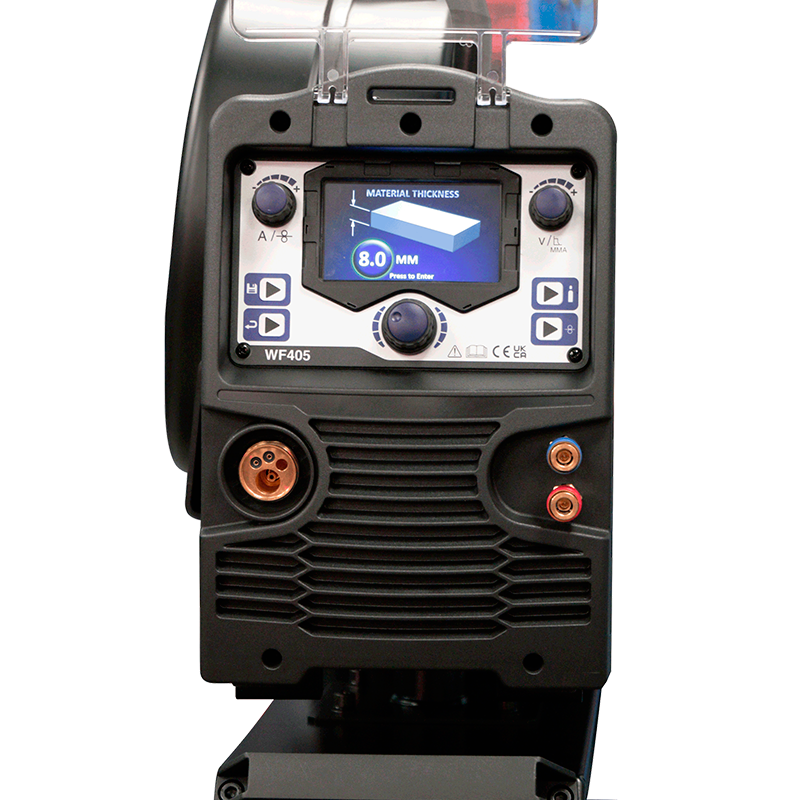

- Separate wire feeder comes with graphical user interface allowing easy setting of the MIG parameters
- Memory function on wire feeder allows MIG welding programs to be saved and recalled
- Wire feed inching button and gas purge button
- 2T/4T Trigger Latching for MIG welding
- Synergic control for MIG welding
- Fan on demand
- Clear visor on wire feeder to protect front panel
- Ready Assembled to Trolley, complete with Storage Drawer
- Optional Water Cooler Unit Available, in replace of Storage Drawer
- Supplied with gas hose and 3m earth lead
| Weight | 90 kg |
|---|---|
| Dimensions | 1050 × 520 × 1140 mm |
| Phase | Three Phase |
| Machine Style | Separate |
| Machine Type | Inverter |
| Maximum Current | 500A DC |
| Duty Cycle | 500A @ 60% Duty Cycle |
| Input Voltage | 400V 3P |
| Voltage | 15.0-39.0V (MIG) |
| Feed Box | 4 Roll Drive |
| Input Current (Eff) | 26.4A (MIG) |
| Output | DC |
| Wire Size | 1.0-1.6mm |
| Spool Size | 200mm (5kg), 300mm (15kg) |
| Minimum Fuse Rating | 32A |
| KVA | 26 |
| Generator Size (Requires AVC) | 30 KVA |
| Cooling | Fan, On Demand, Water |
| Enclosure Protection | IP23S |
| Comes With | 3m Earth Lead, Gas Hose, TR008 Trolley |
| Special Features | 2T/4T Trigger Latching, Bottle Stand, Built-in Water Cooler Unit, Digital Display, Digital User Interface, Lift TIG and MMA, Lift TIG Mode, Synergic Control, Synergic MIG, TIG Mode |
| Warranty | 5 Year Warranty |
| Conforms To | IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 & RoHS compliant |
