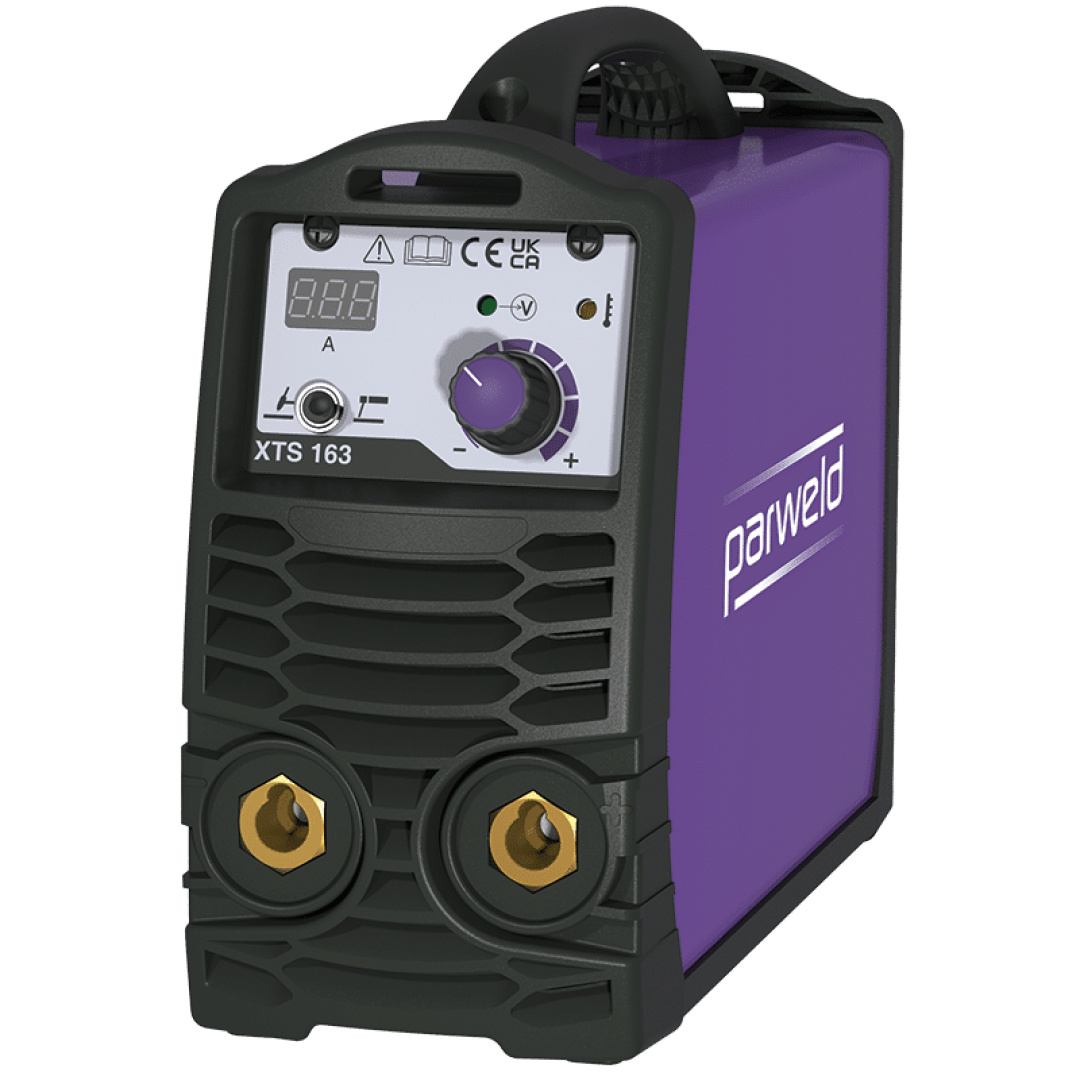

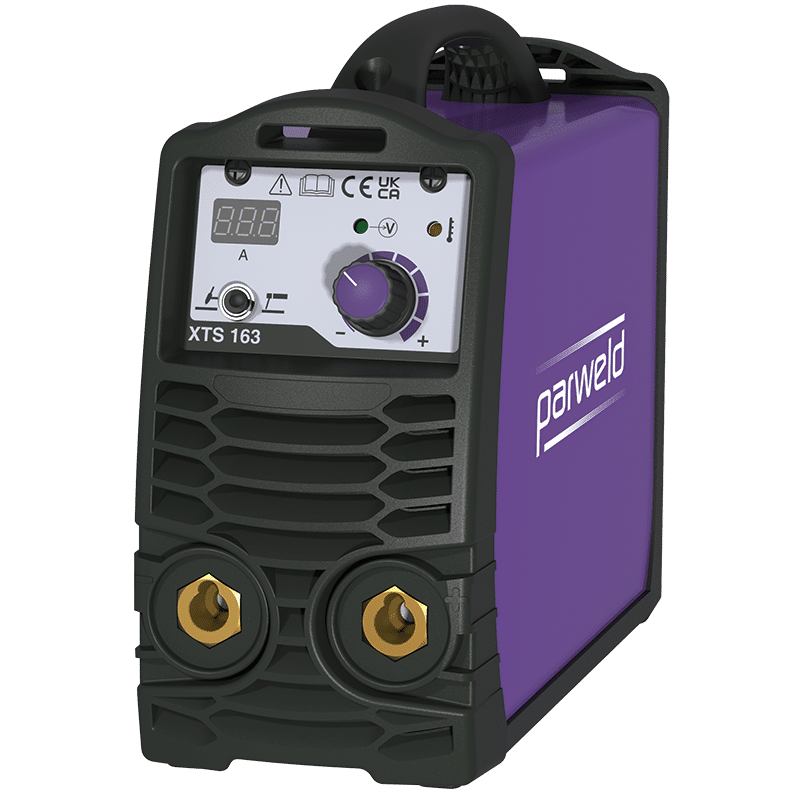

Parweld XTS163 160A MMA Inverter Welder

Parweld XTS163 160A MMA Inverter Welder

The XTS 163 MMA uses latest technology to provide a compact and reliable machine, ideal for everyday applications. Electrodes up to 3.2mm can be used with ease.

By fitting the optional TIG torch and coupling to a suitable gas supply the XTS 163 can be used for TIG welding and is suitable for welding steel and stainless steel. The lift arc mode limits the arc current when the tungsten touches the work piece preventing electrode damage.

The XTS 163 is able to cope with inputs which fluctuate by +/-15% & can be used with the majority of generators. The machine is housed in a rugged steel case. A carry case is available as an optional extra.

Key Features Include:

• 230V Input
• 160A @ 25% Duty Cycle
• Lift TIG Mode
• Digital Display (with Digital Amperage Display) for Easy Setting
• Lightweight at just 4.7kg
• Over Voltage Protection
• Over Current Protection
• Electrode Striking with Arc Force
• Re-Striking with Hot Start
• Connections 35-50mm Twist Lock

• Weight	N/A
  Dimensions	N/A
  Phase	Single Phase
  Machine Style	Compact
  Machine Type	Inverter
  Maximum Current	5-160A DC
  Duty Cycle	160A @ 25% Duty Cycle
  Input Voltage	230V 1P
  No Load Voltage	45V
  Max Electrode Size	3.2mm
  Input Current (Eff)	15.9A
  Output	DC
  Cable Connection	35-50 Dix
  Minimum Fuse Rating	16A
  KVA	8
  Generator Size (Requires AVC)	10 KVA
  Cooling	Air, Fan, Forced
  Enclosure Protection	IP23S
  Comes With	3m Cable, 3m Earth Lead, Electrode Holder
  Ideal for Applications	Agricultural, DIY, Light Industrial Manufacturing, Maintenance Repair, Metal Fabrication, Training
  Special Features	Arc Force, Digital Amperage Display, Electrode Striking, Lift TIG Mode, Lightweight, Over Voltage + Over Current Protection, Re-Striking, Re-Striking with Hot Start
  Warranty	5 Year Warranty
  Conforms To	IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS Compliant
